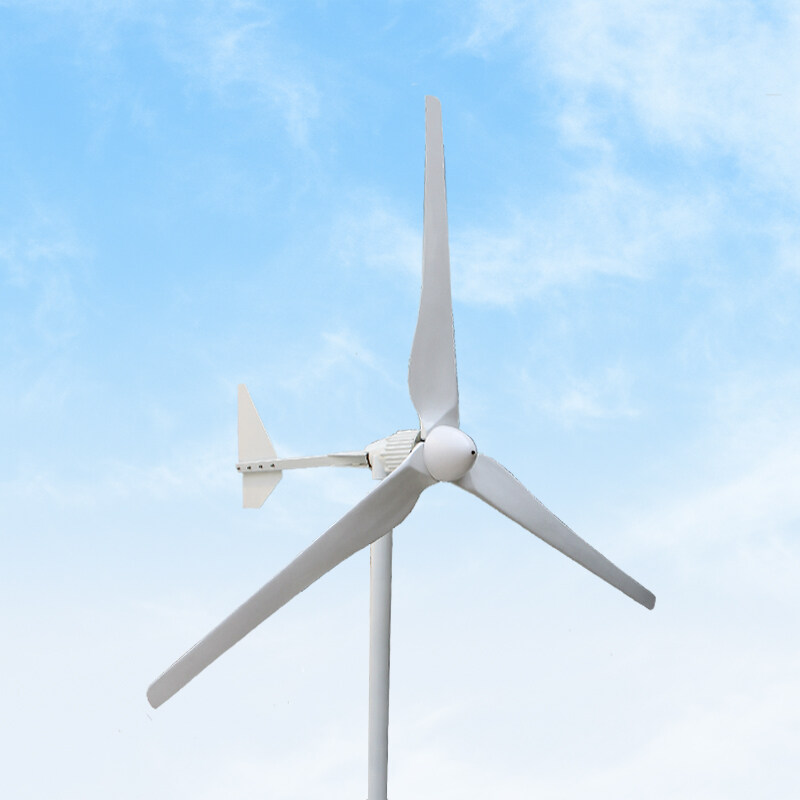

2kw Wind Turbine Generator

The 2kW wind turbine is a small wind energy conversion device designed to meet the needs of areas with abundant wind energy resources but an unstable power supply.

Efficient power generation
The blades of the 2kW wind turbine are made of reinforced fiberglass material, combined with optimized aerodynamic design, which improves the capture and conversion efficiency of wind energy. It can achieve an annual power generation of about 14,700 kWh at an average wind speed of 8 m/s, ensuring efficient power supply.

Low maintenance cost
Thanks to high-quality SKF bearings and brushless design, the 2kW wind turbine reduces mechanical wear and maintenance frequency, and users do not need frequent maintenance.

Strong environmental adaptability
The wind turbine adopts a cast aluminum alloy body with a compact structure and strong corrosion resistance. The enclosure features an IP54 protection rating, offering robust resistance against dust and water ingress, making it ideal for deployment in deserts, coastal regions, and rainy environments.

Model	RX-2000L
Rated Power	2000W
Blades Length	1400mm
Wheel Diameter	2880mm
Rated Voltage	48V-120V
Start Up Speed	2.5m/s
Rated Wind Speed	12m/s
Cut in wind speed	3m/s
Survival Wind Speed	45m/s
Blades Quantity	3
Blades Material	Nylon fiber
Generator Type	Three-Phase Permanent Magnet Generator
Working Temperature	-80℃~+80℃
Protection Level	IP54
Working environment humidity	≤90%
Altitude	≤4500m
Tower Type	Guyed Cable Tower
Overload Protection	Electromagnetic Brake
Gross Weight	70KG
Estimated annual power generation	Under conditions of average wind speed of 8 m/s and standard air density, the annual power generation is approximately 14,700 kWh.



Drawing





Power Curve





Details



Package





Product Application









FAQ



Q: Can I have a sample order?

A: Yes, we welcome a sample order to test and check the quality

Q: What about the lead time?

A: Sample needs 3 days, mass production time needs 1- 4 weeks, depending on the order quantity.

Q: How do you ship the goods, and how long does it take to arrive?

A: It usually takes 5-7 days to arrive. Airline and sea shipping are also optional.

Q: How to proceed with an order?

A: Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for the formal order. Fourthly, we arrange the production.

Q: What are the terms of payment?

A: T/T, L/C, Alipay, for T/T, it is 30% for deposit, the balance 70% before shipment for bulk order.
