Wind Mill 1500w

Horizontal wind turbines (HAWTs) are widely used in various application scenarios, primarily for electricity generation. Some key areas include: Grid-connected Power Generation: HAWTs are commonly connected to the electrical grid, contributing to the energy mix and reducing dependence on fossil fuels.

Send Inquiry

Description

Technical Parameters

Description

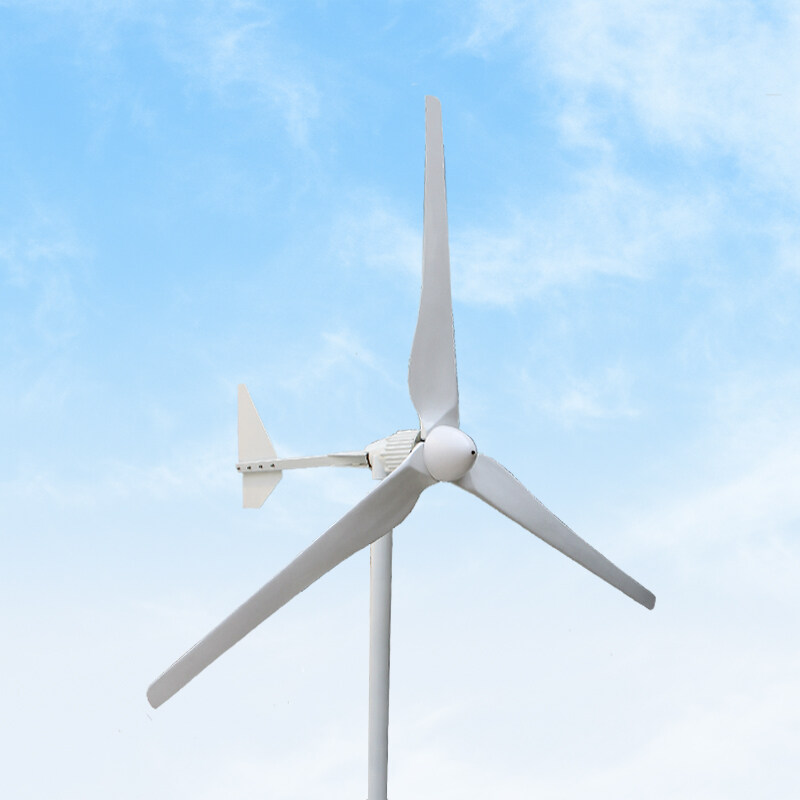

Wind Mill 1500W is a horizontal-axis three-phase permanent magnet wind turbine with a rated power output of 1500W, designed for residential, farm, communication base stations, and various off-grid systems.

product-850-850

Features

High wind energy utilization rate
Wind Mill is equipped with three-piece reinforced nylon fiber blades, combined with an aerodynamic optimization structure, so that the overall wind energy utilization coefficient can reach 0.42, effectively increasing the annual power generation by about 15% or more.

Low starting torque
Through the three-phase permanent magnet AC generator and low-impedance stator structure design, the torque required for the 1500W windmill to start is significantly reduced. It can be started at a wind speed of only 2.5m/s and stably connected to the grid at a wind speed of 3m/s, which is particularly suitable for areas with average wind resources or unstable wind speeds.

Stable power output
With the built-in MPPT controller, Wind Mill can continuously track the maximum power output point in the wind speed range of 0~15m/s, so that the overall wind energy utilization efficiency is maintained stably at more than 90%.

Customizable

The controller and inverter modules can be customized according to different scenarios. Wind Mill supports off-grid and hybrid power supply modes, which are suitable for the integration and upgrade of personalized energy systems.

Specification

Model	RX-1500L
Rated Power	1500W
Blades Length	1250mm
Wheel Diameter	2580mm
Rated Voltage	48V-120V
Start Up Speed	2.5m/s
Rated Wind Speed	12m/s
Cut in wind speed	3m/s
Survival Wind Speed	45m/s
Blades Quantity	3
Blades Material	Nylon fiber
Generator Type	Three-Phase Permanent Magnet Generator
Working Temperature	-80℃~+80℃
Protection Level	IP54
Working environment humidity	≤90%
Altitude	≤4500m

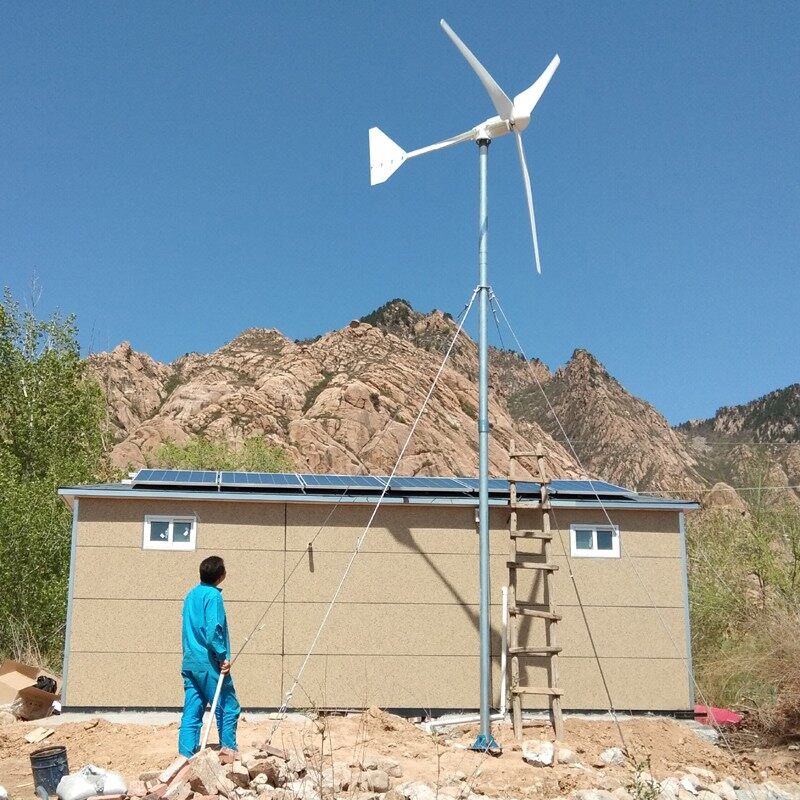

Tower Type	Guyed Cable Tower
Overload Protection	Electromagnetic Brake
Gross Weight	55KG
Estimated annual power generation	Under conditions of average wind speed of 8 m/s and standard air density, the annual power generation is approximately 11,000 kWh.
