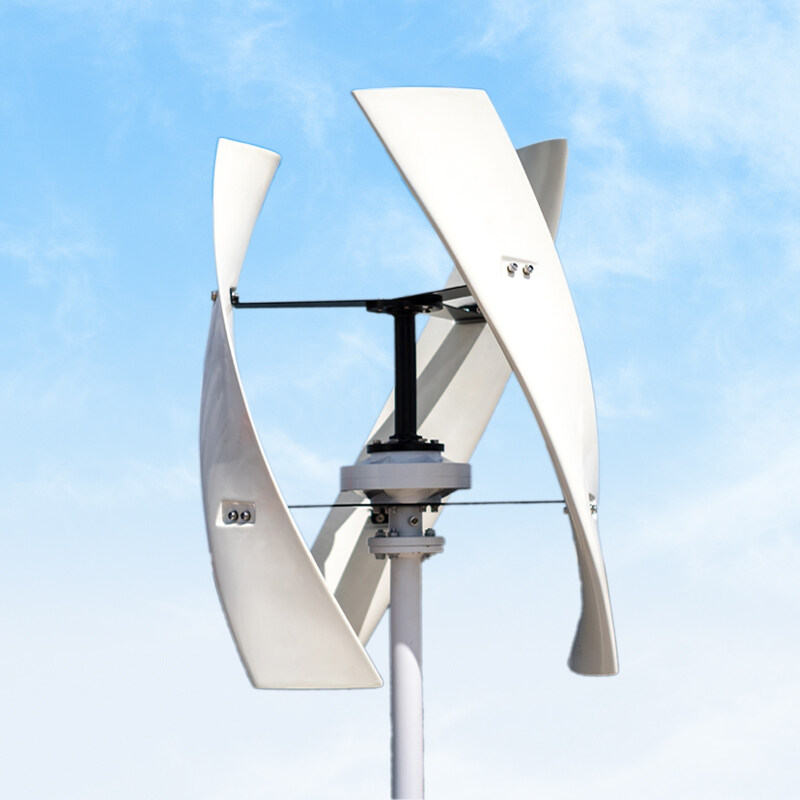

1000 Watt Wind Turbine

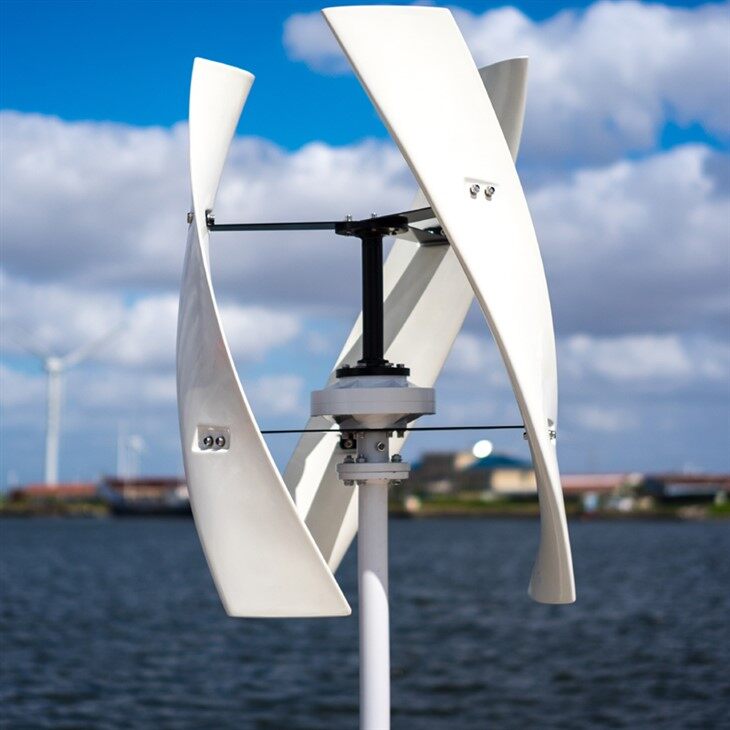

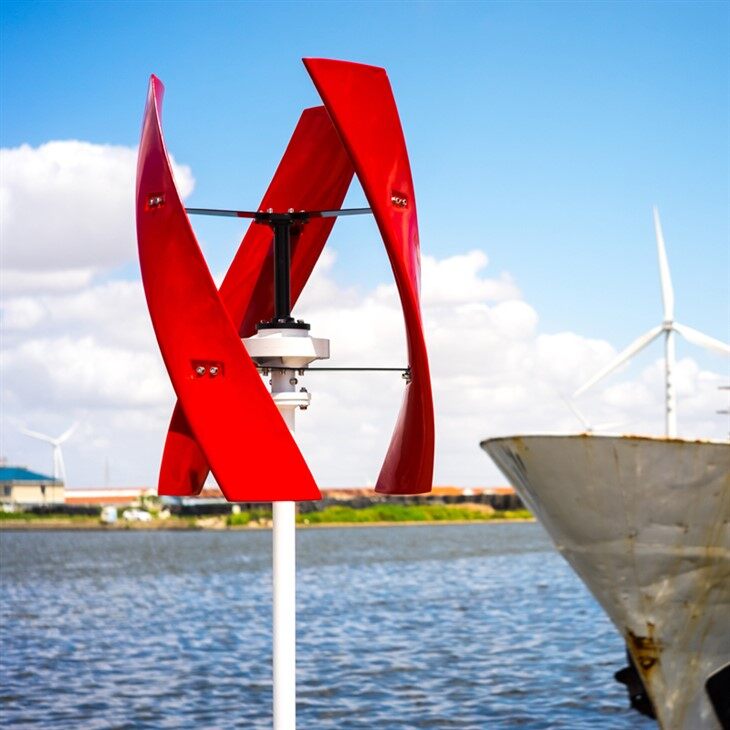

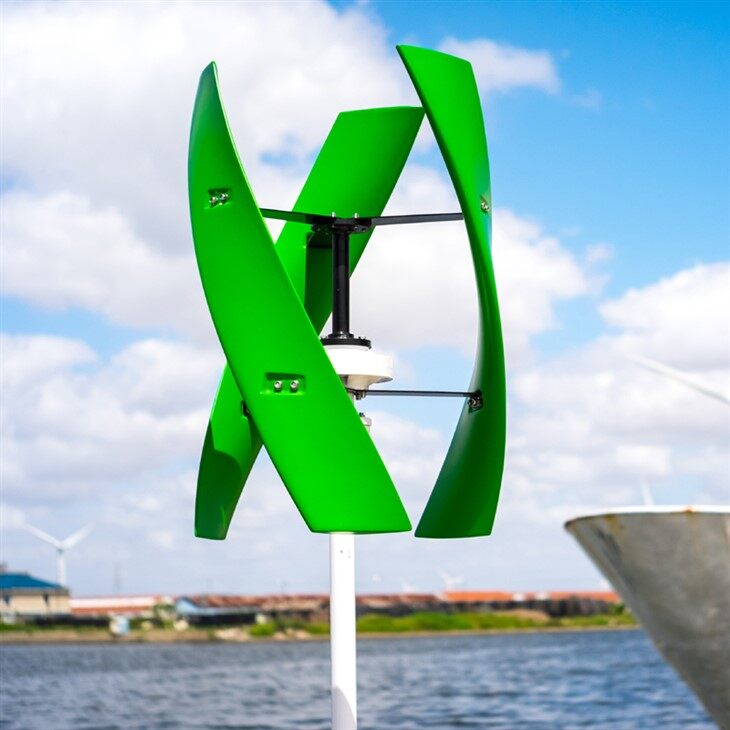

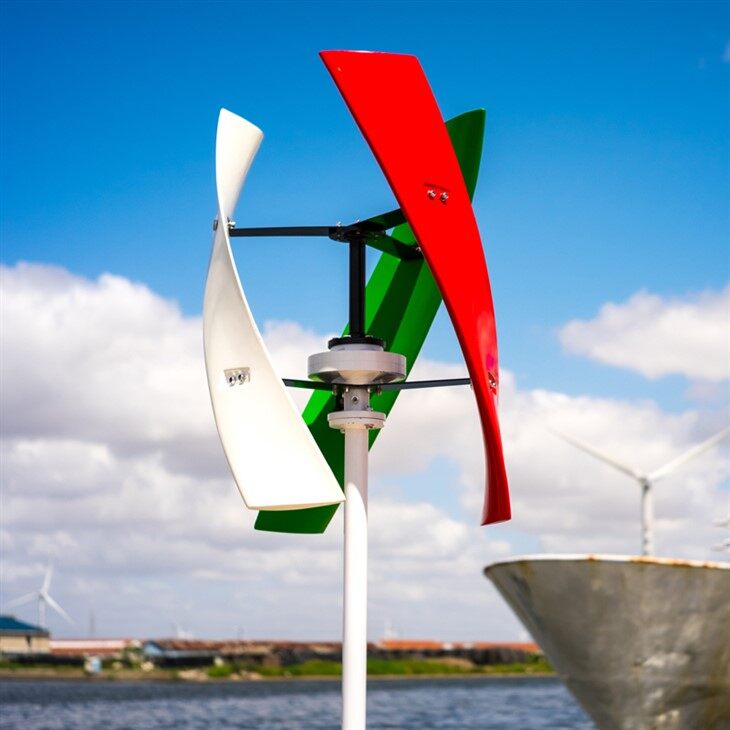

Helix-Rotor, a type of vertical axis wind turbine
Helical rotors are a type of vertical axis wind turbine (VAWT) that use lift to spin the blades. They have curved blades that form a helix or a spiral shape around a vertical shaft. The spiral design allows the rotor to capture wind from various directions without the need for complex mechanisms to turn and face the wind.

Send Inquiry

Description

Technical Parameters

Description

1000W Wind Turbine is a small and medium-sized wind power generation system designed for home, agriculture, communication, and other scenarios. The system is mainly composed of spiral blades, magnetic levitation permanent magnet generators, intelligent controllers, towers, energy storage modules, etc.

850-4

Features

High wind energy capture efficiency
The 1000W Wind Turbine adopts a spiral blade design, which allows the blades to capture wind energy continuously and stably in 360° wind directions. Compared with traditional horizontal-axis wind turbines, the vertical-axis structure combined with spiral geometry can keep rotating under any wind direction, effectively utilizing the energy in the wind speed range of 2.5m/s~10m/s, and improving the average wind energy utilization rate by about 30%.

Less mechanical wear
The magnetic levitation generator achieves non-contact support of rotating parts through the magnetic field, eliminating the physical friction of traditional bearings and brush structures, and effectively reducing the mechanical wear rate of the 1000W Wind Turbine to nearly 0 during operation.

High energy conversion efficiency
The blades are made of high-strength glass fiber through precision injection molding, combined with aerodynamic optimization curves, and work with low-resistance magnetic levitation generators. The comprehensive mechanical-to-electricity efficiency of Wind Turbines can reach more than 85%, which is particularly suitable for medium and low wind speed areas.

Specification

Model	RX-XV1000
Rated Power	1000W
Max Power	1100W
Blades Length	1.0M
Wheel Diameter	0.62M
Rated Voltage	12V~48V
Start Up Speed	1.2m/s
Rated Speed	10m/s
Cut-in Speed	2.5m/s
Survival Speed	45m/s
Blades Quantity	3
Blades Material	Fiber glass
Generator Type	Maglev Levitation Permanent magnet Generator
Working Temperature	-40℃~+40℃
Protection Level	IP54
Working environment humidity	≤90%
Altitude	≤4500m
Install Height	3~12m
Overload Protection	Electromagnetic Brake
Estimated annual power generation	Under average wind speed of 5 m/s and standard air density conditions, the annual power generation is approximately 800-1,200 kWh.
